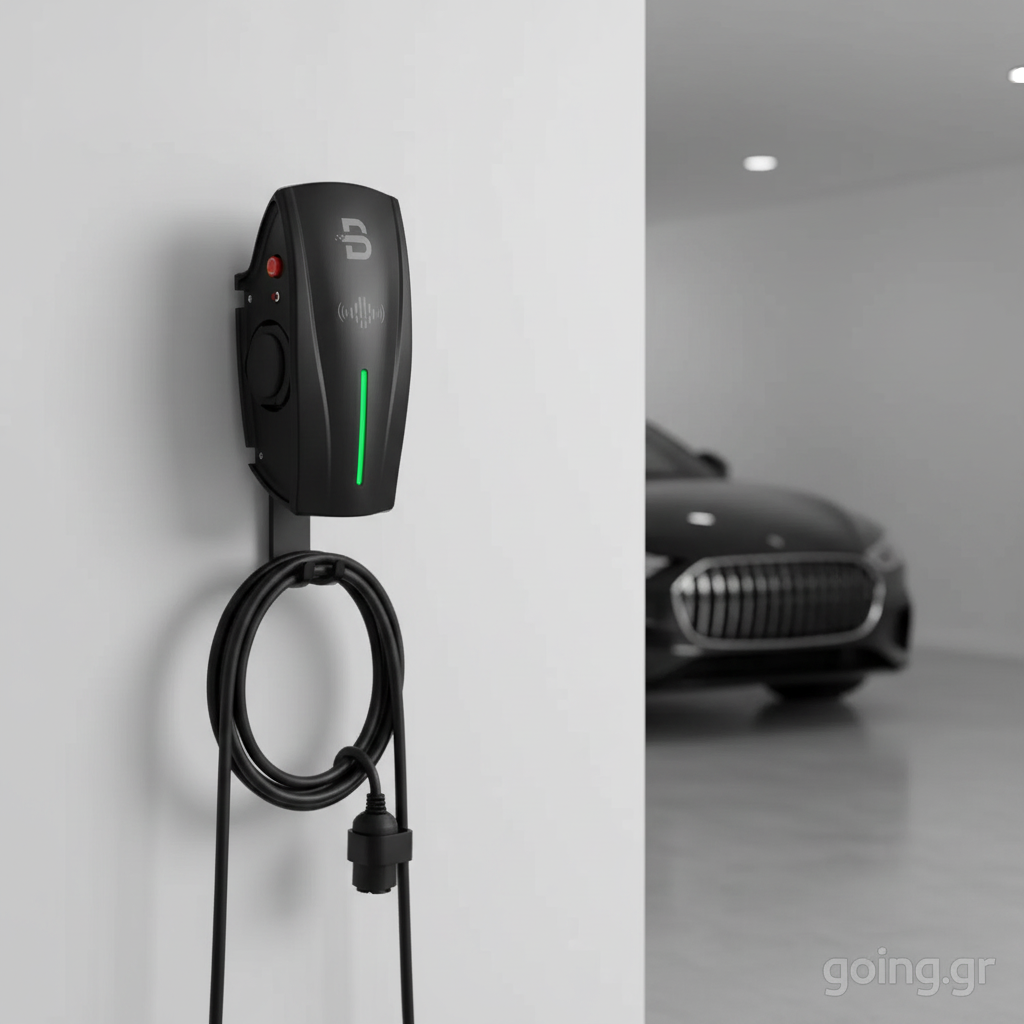

Beny 22KW BCP-BT2N-L charging station without built-in cable. (Subsidized)

Name: Beny 22KW BCP-BT2N-L charging station without built-in cable. (Subsidized)
Brand: GoinG
SKU: BCP-BT2N-P
Price: 930.00 EUR
Availability: InStock

€930,00 EUR

~~€1.150,00 EUR~~ €930,00 EUR

Sale Sold out

Taxes included.

Charger BENY. Smart EV Type 2 wireless IP55. Electric vehicle charging station. EV Wallbox CE.

1-Phase from 3.7kW to 7.4kW
3-Phase from 4.1kW to 22kW
Full Protection
Dynamic Load Balancing (optional)
Open Charge Point Protocol (optional)
Customize All Types of Connectors
Smart Version with APP (optional)
3 Years Warranty

SPECIFICATION

Electrical
Charging Capacity	1.3kW-7.4kW / 4.1kW-22kW
Charge Mode	Mode 3 (IEC 61851-1)
Output Power	Selectable 1-phase or 3-phase, 230-400V 6A -32A, 50-60Hz
Socket Type	Type 2 Socket
Protection and certification
Built-in RCD	DC6mA leakage sensor built-in
Socket	IP55, IK10
Housing Fire Ratings	V0
Operating Temperature	21.31 dBuA/m@3m distance
Compliance	IEC61851-1,IEC61851-21-2,IEC61000-4 CE EMC EU/2014. CE Low Voltage EU/2014/35
Certificate	CE, UKCA, CB, RCM
Connectivity
Authorization	Auto-start standard / RFID card option
Status Indication	LED ring
Charging Protocol	OCPP 1.6J
WLAN Communication	Wi-Fi / Bluetooth 4.2 option
Mechanical
Housing	Polycarbonate
Dimension	W278 x H360 x D152mm
Mounting	Wall or Pole
Wi-Fi
Operating Frequency Range	2412 – 2484MHz
WI-FI Protocols	IEEE 802.11 b/g/n
Channels	13
TX Power	<20dbm
EIRP	0.459
TX bandwidth	20MHz/40MHz
Modulation type	OFDM & DSSS
Transmitting Duty Cycle	10%
Bluetooth BLE
Sensitivity @30.8% PER	– 93 dbm
Co-channel C/I	+10db
RF Power Control Range	-12 ~ 9dbm
NFC
Modulation Type	ASK
Operating Frequency Range	13.56MHz
H-field strength	21.31 dBuA/m@3m distance
Antenna Type	Coil Antenna
