Electrical panel pre-wired for charging stations. Three-phase.

Features

The electrical protection panel is specially designed for AC EV charger. The cable entry is inserted from the upper left and extracted from the lower right. To start operation you must first activate the RCBO and then activate the low voltage release. To disable it you only need to disable RCBO , the release will be done automatically.

● RCBO
It is TYPE A RCBO, it has overload and short circuit protection, which is according to the IEC standard of leakage safety requirements for RCD EV built-in charger.

● Undervoltage detection will automatically release when L and N line voltage is below 160V, then all line including L1, L2, L3, N, in EV charger will be cut off, then EV charger will be completely power off. This function can maintain safety and long-term operation.

● Ingress Protection

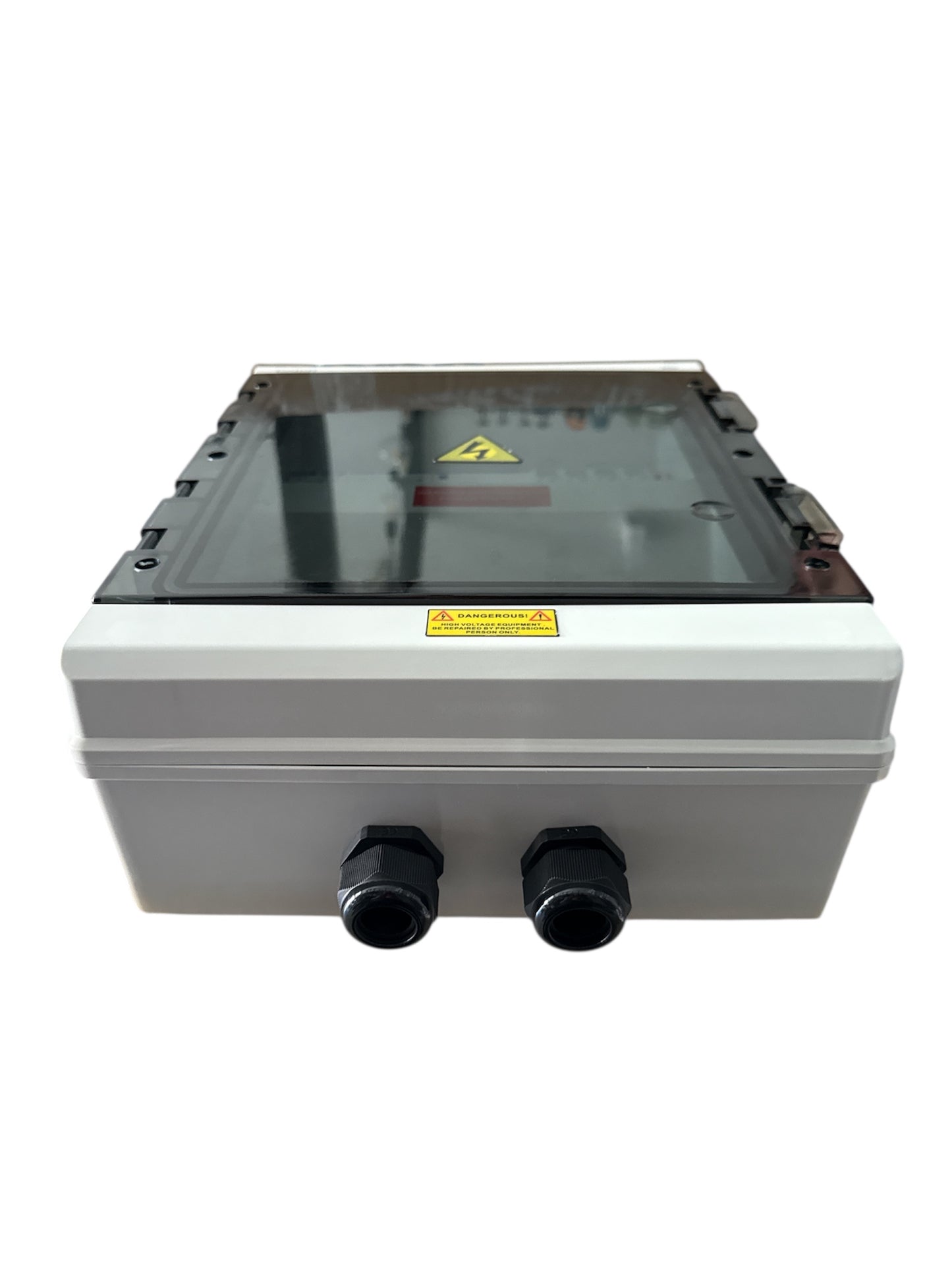

IP65, the bottom of the box has a pre-installed waterproof connector, which is more convenient for cable input - output.

SEE INSTRUCTIONS
